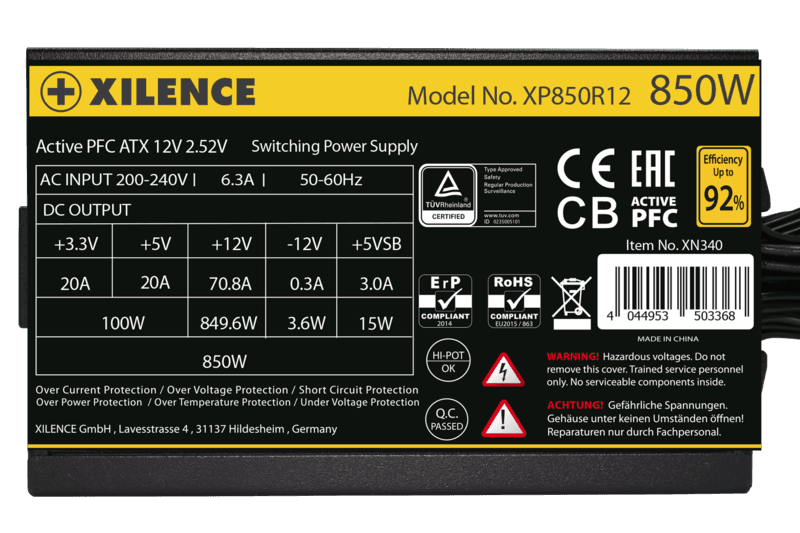

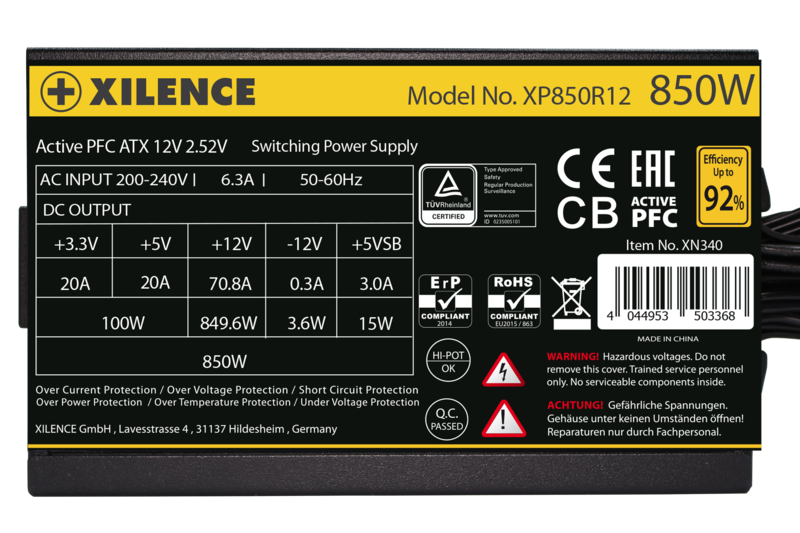

Power Output (Wattage)800–899 W850W
Efficiency Certification80 PLUS GoldEfficiency (%) at 230V, 20% load 92
Efficiency (%) at 230V, 50% load 93
Efficiency (%) at 230V, 100% load 91
Form Factor / ATX StandardATX (ATX 2.x)Version 2.52
12VHPWR (16-pin)არა
ModularityNon-Modular
PFC TypeActive PFC
Cables (Connector)ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 1
P8 (CPU) 1
PCI-E 6-pin (GPU) -
PCI-E 6+2-pin (GPU) 3
PATA 4-pin 3
SATA 15-pin (HDD, Drives) 6
ATX (24 pin)1
CPU 4+4-pin2
PCI-E 6+2-pin3
PCI-E 16-pin (12+4Pin)-
SATA6
Peripheral (4 pin)3
FDD Adapter-
RGB Lightingარა
Protection featuresOCP (over current protection) ✓
OVP (over voltage protection) ✓
UVP (under voltage protection) ✓
SCP (short circuit protection) ✓
OTP (over temperature protection) ✓
OPP (over power protection) ✓
MTBF-
Fan sizeBearing technology Hydro Bearing
Fan size (mm) 120
ფერისხვა
ზომებიDimensions, package (L x W x H), (mm) 140 x 150 x 86mm
წონაGross weight, package (kg) 2.3
