🛜Wi-Fi StandardWi-Fi 6 (802.11ax)
📶Wi-Fi BandDual Band (2.4 GHz + 5 GHz)
Standards and ProtocolsIEEE 802.11 b/g/n/ac/ax
WiFi Speeds5G:
IEEE 802.11ax: 7.3 Mbps to 2403 Mbps
IEEE 802.11ac: 6.5 Mbps to 1734 Mbps
IEEE 802.11n: 6.5 Mbps to 300 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps
IEEE 802.11n: 6.5 Mbps to 300 Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
📍 Mesh Supportდიახ
📡◯ Coverage Area201 – 300 m²Up to 300 meters
*Coverage range can vary based on environment
Max Concurrent Clients256
Working outdoorდიახ

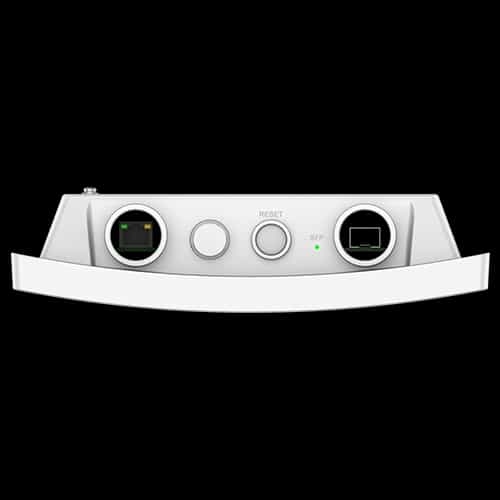

🔌Total LAN Ports21x 1G RJ45 Port and 1x 2.5G SFP Port
Maximum Port Speed2.5G Ethernet
⚡Power InputPoE+ (802.3at)PoE 802.3af/ 802.3at;
Maximum Power Consumption: 13W
Self-power adaptation upon auto-detection of PoE or PoE+
SecurityWPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control
lockdown via digital signatures, unique security certificate and random default password per device

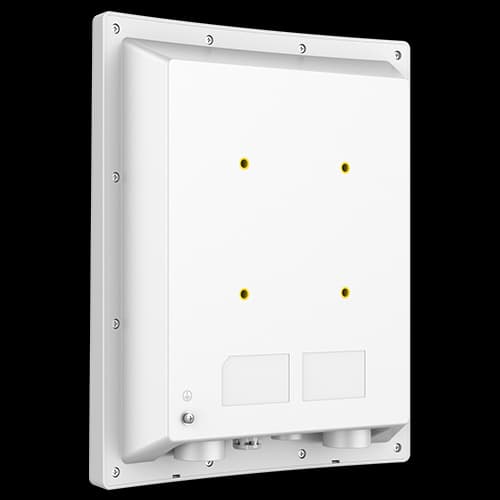

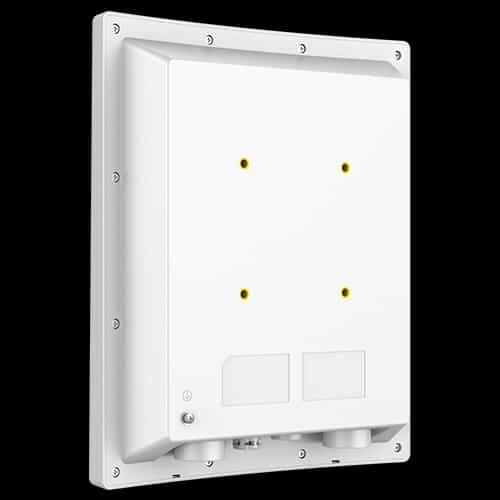

Mount TypeWall
Antenna5 individual internal antennas
2.4GHz x 2 , gain 5.5 dBi
5 GHz x 2, gain 6.0 dBi
BT gain 4.5 dBi
PhysicalUnit Dimension: 270mm x 230mm x 57mm
Unit (including brackets): 1kg
დამატებითი ინფორმაციაPackage Content GWN7660ELR AP, Mounting Kits, Quick Installation Guide
