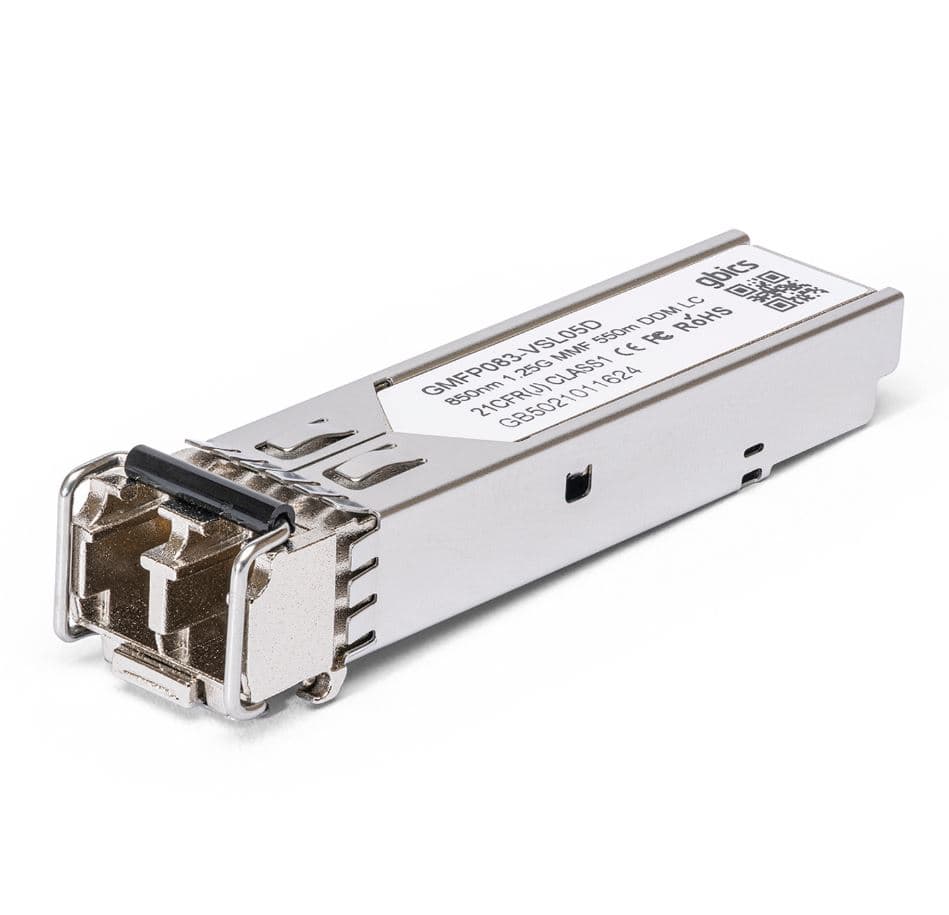

🧱 Form FactorSFP
⚡ Speed / Standard1G (1000BASE-SX / LX / T)
📡 Fiber TypeMulti-Mode (MMF)
🔌 Connector TypeLC Duplex
🌈 Wavelength (nm)850 nm
📏Transfer Distance500mUp to 550 m (OM2/OM3 depending on fiber grade)
Max Power Consumption≤ 1.0 W
TX Power-9.5 to -3 dBm (typical SX class range)
RX Power-17 to 0 dBm (typical SX class range)
Operation Voltage3.3V ± 5%
დამატებითი ინფორმაცია1000BASE-SX IEEE 802.3z compliant
VCSEL 850nm laser
Hot-swappable SFP module
Low power consumption
DDM / DOM support (depending on model)
Short-reach multimode optical transceiver
