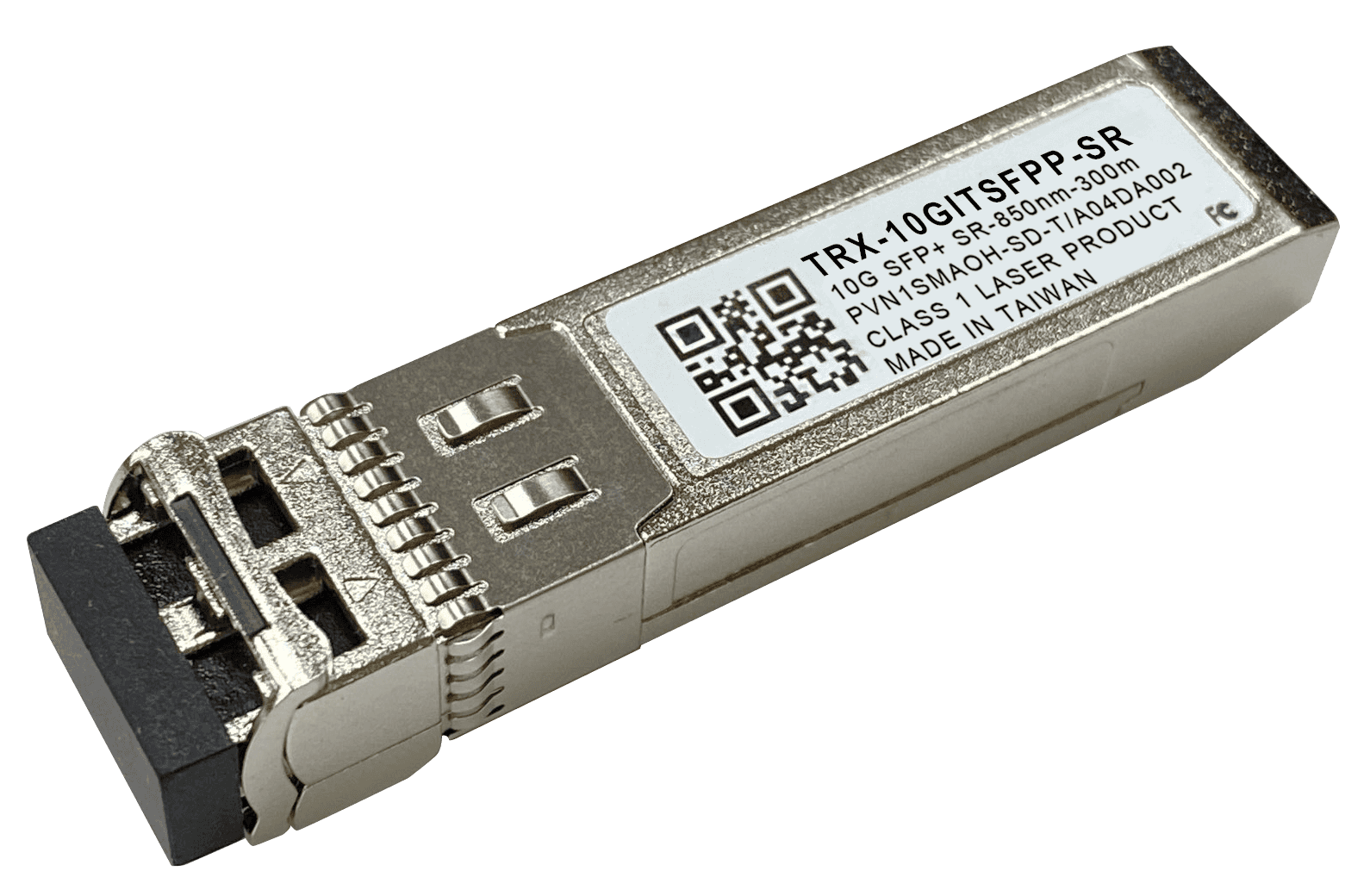

🧱 Form FactorSFP+
⚡ Speed / Standard10G (10GBASE-SR / LR / ER)
📡 Fiber TypeMulti-Mode (MMF)
🔌 Connector TypeLC Duplex
🌈 Wavelength (nm)850 nm
📏Transfer Distance500mUp to 300 m (OM3) / 400 m (OM4)
Max Power Consumption≤ 1.0 W (typical SFP+ SR range)
TX Power-7.3 to -1 dBm (typical range)
RX Power-9.9 to -1 dBm (typical range)
Operation Voltage3.3V ± 5%
დამატებითი ინფორმაციაDigital Diagnostic Monitoring (DDM/DOM)
Hot-pluggable
850nm VCSEL laser
IEEE 10GBASE-SR compliant
Low power consumption
Multi-vendor compatible (MSA SFP+)
